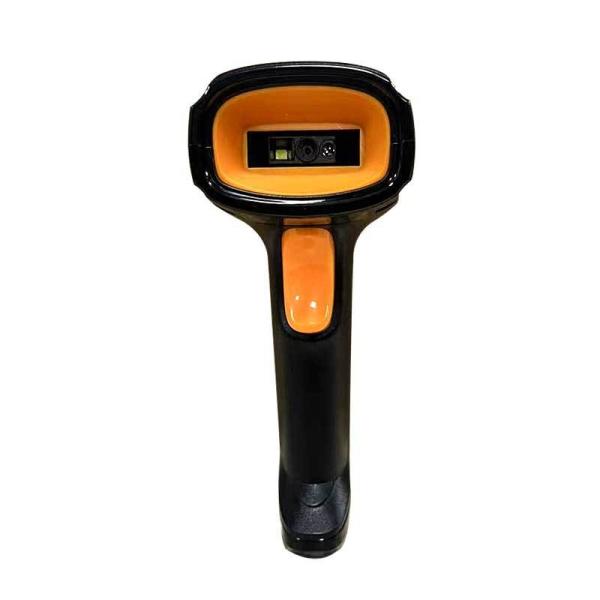

SC20/SC20-BT Handheld Barcode Scanner The Must-Have Tool For Streamlined Scanning In Logistics And Courier Environments

Brand Name : SR

Model Number : SC20/SC20-BT

Place of Origin : China

MOQ : 10PCS

Price : 13-20usd

Payment Terms : L/C,T/T

Supply Ability : 4000 pcs/day

Delivery Time : 5 working days

Packaging Details : corrugated paper box

BLE Bluetooth Transmission Distance (Open Outdoor) : 50 - 100 meters

2.4G Transmission Distance (Open Outdoor) : 100 - 150 meters

Operating Temperature : 0°C ~ 50°C

Storage Temperature : -40°C ~ 60°C

Prompt Method : Buzzer and LED indication

Resolution : 300,000 global pixels

Contact Now

SC20/SC20-BT Handheld Barcode Scanner The Must-Have Tool For Streamlined Scanning In Logistics And Courier Environments

Description:

Tailored for logistics warehousing and express delivery needs, the SC20/SC20-BT handheld barcode scanner delivers high-efficiency operations with its robust configuration: Powered by low-energy Bluetooth (BLE) technology, it achieves seamless 50-100 meter long-range transmission in open outdoor environments; Fully compatible with both 1D and 2D barcodes, scanning speed remains consistent regardless of angle, with a single charge supporting over 100,000 scans. Compact and portable, it withstands temperature fluctuations, humidity changes, and accidental drops, ensuring reliable performance to boost operational efficiency.

Parameters:

Item Name	Specific Parameters
Readable Symbologies (1D)	CODE128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2 of 5 ITF14, MATRIX 25, Code39, Codabar, Code93, UCC/EAN-128, Code11, ISBN, Plessey, MSI_Plessey, CODE32, INDUSTRIAL25, STANDARD25
Readable Symbologies (2D)	PDF417, MicroPDF417, QR Code, Aztec, DataMatrix, Maxicode, MicroQRcode
Reading Precision	≥ 4mil
Resolution	300,000 global pixels
BLE Bluetooth Transmission Distance (Open Outdoor)	50 - 100 meters
2.4G Transmission Distance (Open Outdoor)	100 - 150 meters
Barcode Sensitivity - Tilt	±45°
Barcode Sensitivity - Rotation	±25°
Barcode Sensitivity - Deflection	±75°
Minimum Contrast	≥ 30%
Light Source	620nm visible red light - emitting diode
Image Sensor	CMOS
Number of Barcode Reads on a Single Full Charge	More than 100,000 times
Battery Capacity	1800mAh
Battery Charging Time	It takes up to 3.5 hours to fully charge
Operating Voltage	3.3V
Maximum Power Consumption	550mW
Current - Maximum Current	165mA
Current - Operating Current	145mA - 165mA
Current - Standby Current	95mA
Current - Sleep Current (Wireless Product)	＜10μA
Charging Current	450mA
Appearance Dimensions (Length × Width × Height)	159mm × 65.5mm × 85mm
Weight (Excluding Wiring)	165g
Prompt Method	Buzzer and LED indication
Storage Temperature	-40°C ~ 60°C
Operating Temperature	0°C ~ 50°C
Relative Humidity	0 ~ 95% (No condensation)
Drop Height (Free Fall)	1.5 meters
IP Protection Grade	IP52

Product Details:

SC20/SC20-BT Handheld Barcode Scanner The Must-Have Tool For Streamlined Scanning In Logistics And Courier Environments
